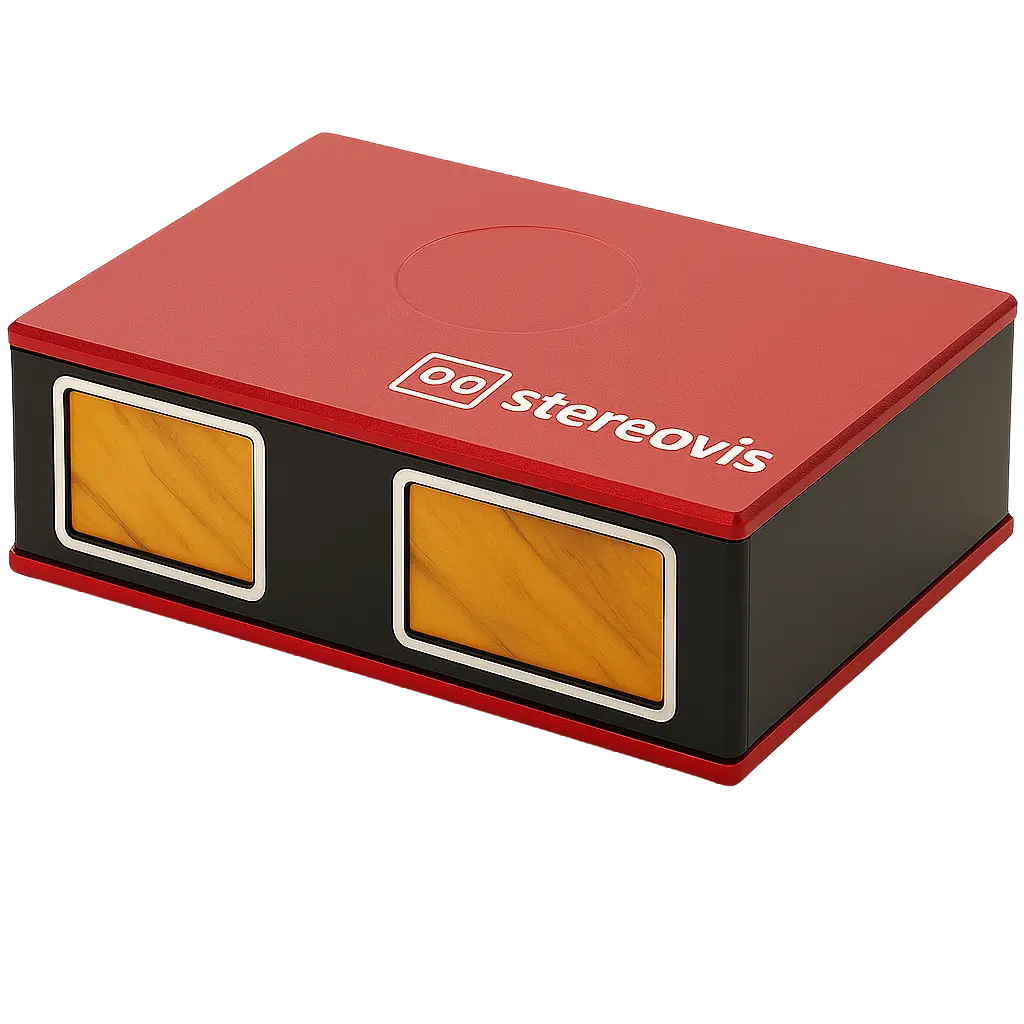

Stereovis M03
Large Field-of-View Bin Picking Camera
Embedded | Mid-Range | Versatile Applications
The M03 is a high-performance stereo vision system with a wide field of view and embedded processing. It is ideal for industrial applications such as bin picking, machine tending, or logistics automation, all without needing an external PC.
Processor
Jetson Nano
Resolution
2.8 MP
Working distance
1500-2500
Depth Accuracy
±0.1 mm
Interface
Ethernet
SDK Support
Python, C++, C#, ROS
OS
Ubuntu/Windows
Power
12V DC, 8A
Enclosure
IP65, aluminum
Dimensions
280 × 126 × 95 mm

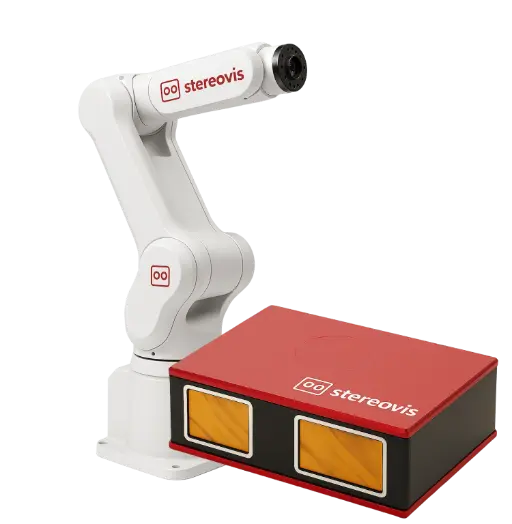

Stereovis 3D Cameras & Robot Controller provide industrial-grade precision and real-time control for robotic automation, bin picking, 3D inspection, and smart manufacturing.
All products come with developer-ready SDKs for Python, C++, C#, and support ROS integration.
Supported globally by our team and backed by NVIDIA-powered AI computing.

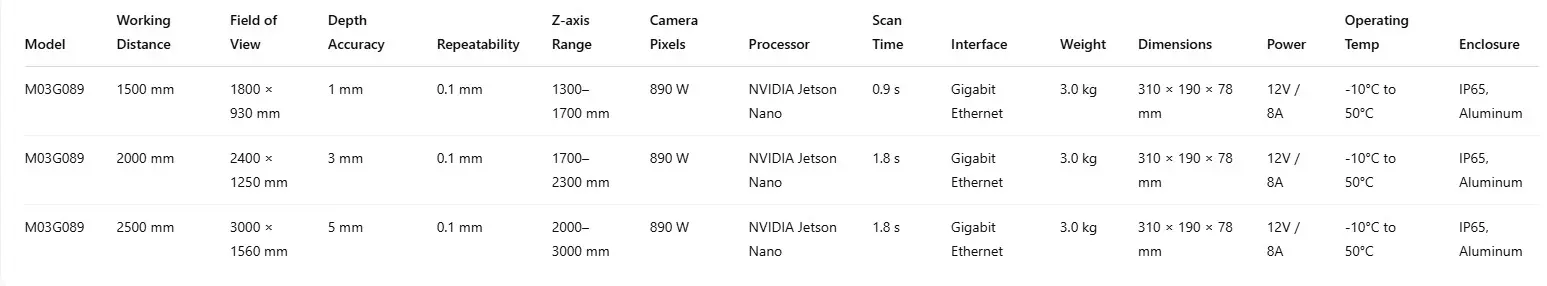

Possible variants
Key Features
- 🔍 Wide FOV — Ideal for large part or bin picking detection
- 🧠 Fully Embedded — Jetson Nano onboard
- ⚡ Real-Time 3D — Outputs point cloud and pose at up to 30 FPS
- 🧰 AI-Ready SDK — Includes calibration & pose correction tools
- 🧼 Industrial Build — IP65 rugged aluminum enclosure
- 🌐 Robot-Ready — Works with all major arms via TCP/IP
