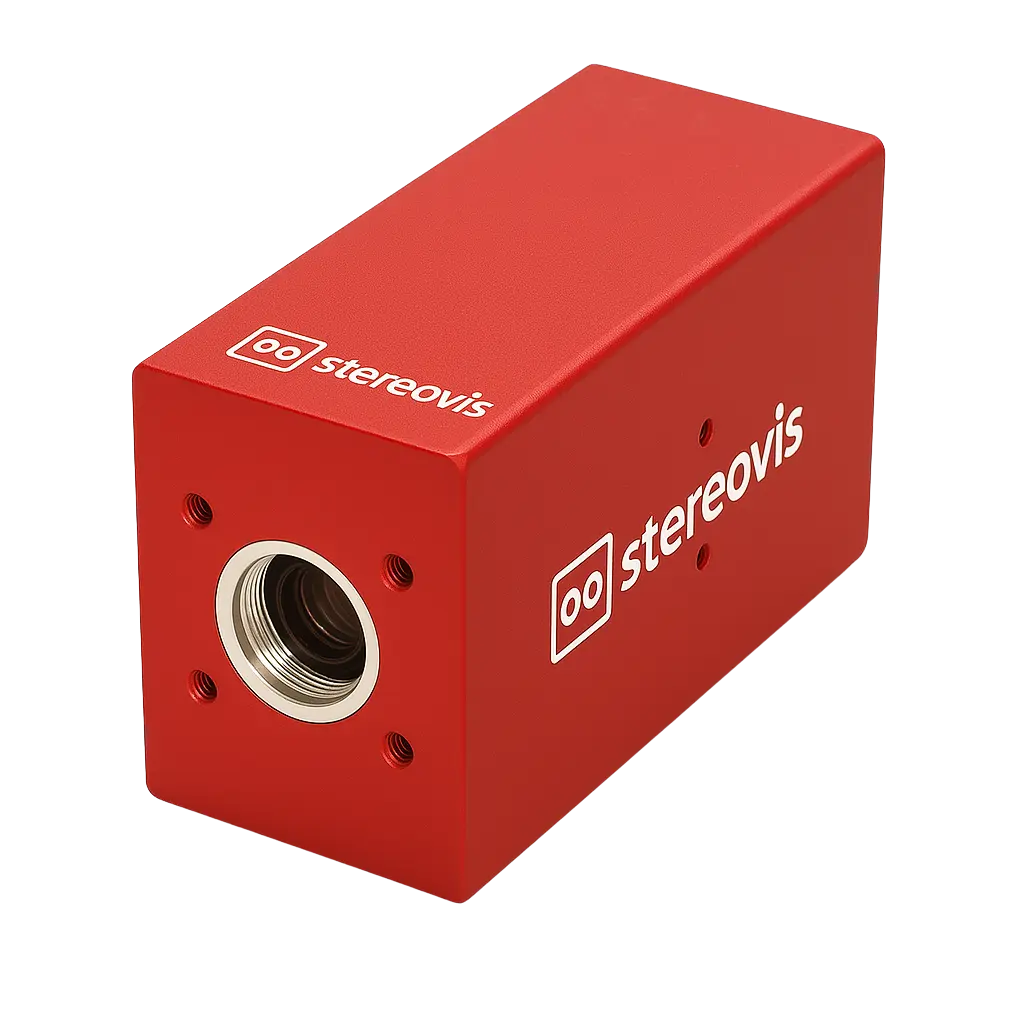

Stereovis M25A

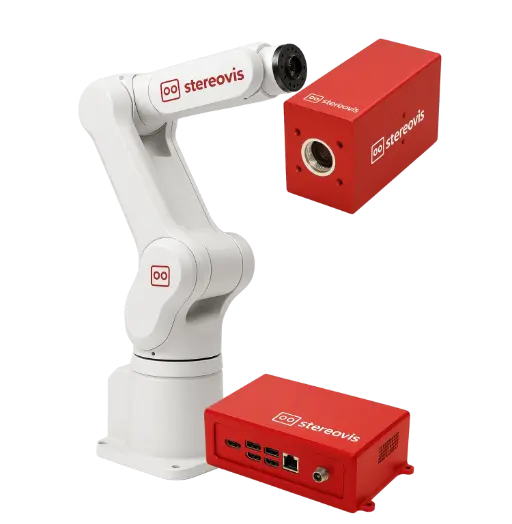

The M25A is a high-accuracy 3D camera designed for robot pose calibration, quality inspection, and advanced AI applications. It features a single high-resolution sensor and a compact form factor, ideal for use in industrial or collaborative environments. The M25 can either be connected to an external computer (e.g. IPC or workstation), or integrated directly with the VC02 edge controller for robotic applications — allowing full robot control and visual computing without needing a PC.
Interface
USB 3.0
Resolution
2MP
Processor
External PC or VC02
SDK Support
Python, C++, C#, ROS (through connection with the VC02)
OS
Ubuntu/Windows
Power
12V DC, 1.5A
Enclosure
IP40, aluminum
Stereovis 3D Cameras & Robot Controller provide industrial-grade precision and real-time control for robotic automation, bin picking, 3D inspection, and smart manufacturing.
All products come with developer-ready SDKs for Python, C++, C#, and support ROS integration.
Supported globally by our team and backed by NVIDIA-powered AI computing.
Key Features
- 📏 Robot pose calibration – Ideal for robot docking and teaching tasks
- 🧠 Works with VC02 or PC – Supports flexible deployment: edge or workstation
- 💡 High-precision output – Sub-millimeter measurement accuracy
- 🧰 Compact & lightweight – Easy to mount on robot arms or workstations
- 💻 Plug & play interface – USB 3.0 connectivity
- 🔒 Durable build – Robust housing with IP40 rating
- 🌐 Industrial communication-ready – Works with VC02 for TCP/IP robot control
- SDK control possible through connection with VC02 robot controller
